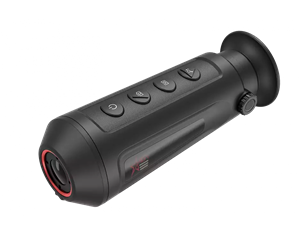

AGM TAIPAN TM15-384x288 THERMAL MONOCULAR
Regular Price: $1,425.00
Our Price: $1,295.00
Sale Price: $
1,195.00
Savings: $230.00
Product Code:
AGM3092451012TA51
Qty:
Description
Technical Specs
AGM3092451012TA51
Interface USB Type-C
Pixel Interval 12 μm
Multi Language menu Yes
Drop Test Height 1.5 m (4.9 feet)
Digital Magnification 1.5x - 12x
Detector type Vanadium Oxide Uncooled Focal Plane Arrays
Response Waveband 8μm to 14μm
FFC (Flat Field Correction) Auto, Manual, External Correction
Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh rate 50 Hz
Aperture F1.0
Resolution 384×288
Detection Range (6' object) 710m/yd
NETD Less than 35 mk (@25°C), F#=1.0
Lens (focal length) 15 mm
Power 5 VDC/2 A, 1.5 W
Field of view (H × X) 17.5° × 13.1°
Digital zoom 2×, 4×, 8×
Monitor 1280×960, 0.4 inch, LCOS
Imaging palettes Black Hot, White Hot, Red Hot, Fusion
Storage Built-in memory module (8 GB)
Record Video On-board video recording
Capture Snapshot Yes
Battery Type Built-in rechargeable Lithium battery
Wi-Fi Yes
CVBS Output Yes (via USB)
Battery Operating Time More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
Battery Capacity Display Yes
Weight 290 g (0.64 lb)
Working Temperature/ Humidity -20°C to 55°C (-4°F to 131°F)
Overall Dimensions 158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)
Protection Level IP67
Magnification 1.5x
