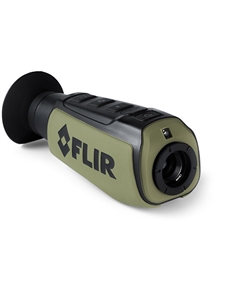

Models 640
Detector Type 640 × 512 VOx
Microbolometer
Video Refresh Rate <9Hz
NTSC
Field of View (H x V) 18° × 14° NTSC
Focal Length 13
mm Fixed Focus 19mm Fixed Focus 33mm Fixed Focus
Start up <
1.5 seconds
Waveband 7.5 -
13.5 μm
Thermal Sensitivity <50
mK @ f/1.0
Image Processing FLIR
Proprietary Digital Detail Enhancement ™
User Interface
Splash Screen Generic
Power Button On/Off
Zoom Button 2X, 4X Zoom
Black Hot/White Hot BH/WH/InstAlert
™
Brightness Adjusts
display Brightness Setting
Task Light LED
Enabled during Power off state
System Specifications
Built-In Display 640 X
480 LCD Display
Video Output NTSC
composite video (Switchable to PAL w/GUI) - 320 Model only
Image Polarity White
Hot/Black Hot/InstAlert ™ ; Selectable
On-Screen Symbology Standard
Power
Battery Type Internal
Li-Ion Cell
Battery Life (Operating) >5
Hours
Environmental
Rating IP-67,
Submersible
Operating Temp. -4
° F to 122 ° F (-20 ° C to 50 ° C)
Storage Temp. -40 ° F
to 140 ° F (-40 ° C to 60 ° C)
Drop 1 m drop
Physical
Weight (incl. lens) 12
oz (340 g)
Size (L × W × H) 6.70"
× 2.31" × 2.44"
Range Performance
Detect Man (1.8 m × 0.5 m) 1246 yard (140m)
Physical
Packages Include Handheld
Thermal Camera, USB Power Adapter/Charger, Wrist strap, Custom Video out cable
(320 & 640 versions), USB Cable, Quick Start Guide, Molle bag
Analog Video
Output? Yes
