THERMAL IMAGING PERFORMANCE (640 X 512)
Sensor Type 640 x
512 17μ VOx microbolometer
Field of View (Sensor) 9.4°∆(H)
x 7.5˚ (V)
Spectral Band (Display) 9.4°∆(H)
x 7.5˚ (V)
Magnification Options 1x,
2x and 4x
Spectral Band 7.5-13.5
μm
SYSTEM FEATURES
Silent Operation Inaudible
beyond 1 m
Bore Sight Retention Holds
bore sight through extensive rounds of firing on a variety of weapon platforms
OUTPUTS
Video RS-170
external video out (NTSC or PAL)
POWER
Power Requirements 2
or 3AA (lithium or alkaline) OR 1 or 2 DL 123 batteries (installed in any
orientation)
Battery Life Approximately
6 hours continuous use with 3AA lithium
Power Rail Compatible Accepts
external power
ENVIRONMENTAL
IP Rating IP
68 (20 ft. freshwater, 6 hr; 66 ft seawater, 2 hrs)
Operating Temp -40°∆C
to +49°∆C (-40°∆F to +120°∆F)
Storage Temp -40°∆C
to +71°∆C (-40°∆F to +160°∆F)
Shock and Vibe Per
MIL-STD-810F
EMI Per
MIL-STD-461E
DIMENSIONS, WEIGHT & MOUNTING
Dimensions 7.3”
L x 2.8” W x 3.5” H (185.42mm L x 71.12mm W x 88.9mm H)
Weight 1.75lbs(0.79k)
with batteries and mounting hardware
Mounting Compatible
with any Mil-Std-1913 Picatinny Rail System
INTERFACES
Command and Control Joystick:
Palette, Polarity, Zoom, Digital Detail Enhancement Brightness/Contrast
Windage/Elevation, and Menu
Menu: Calibration, Display, Mode (Clip-on), Weapon, External
Video, and Laser (On/Off)
STANDARD PACKAGE

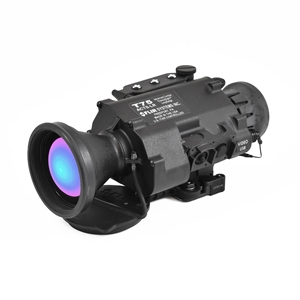

T75 with adjustable quick detach throw lever mount, coupling
light shroud / eye relief, video output cable, remote control pad, batteries,
operators manual, graphic training aid, lens cleaning kit, and soft carrying
case
